OKW’s SMART-BOX IP-Rated Plastic Enclosures Now In Eight Sizes

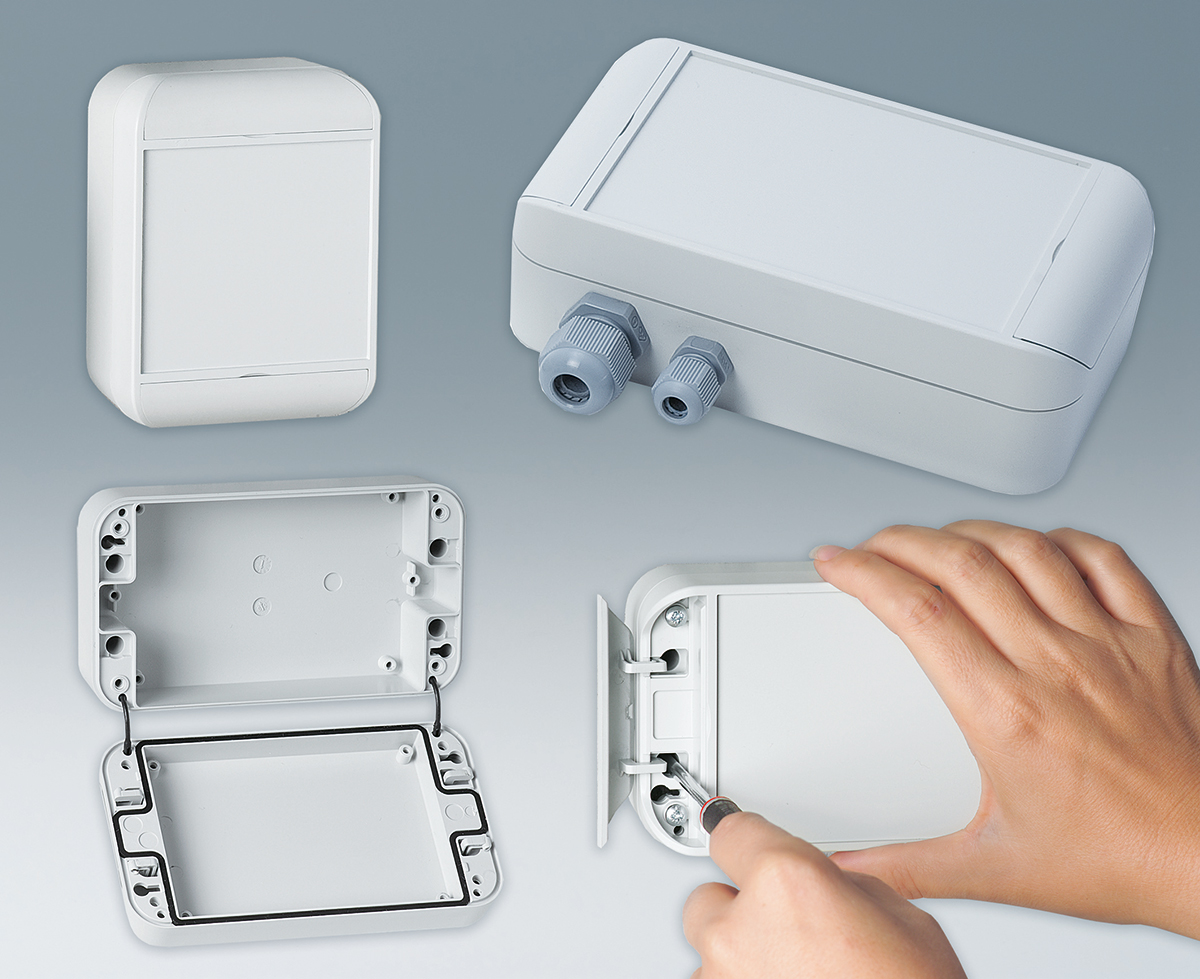

SMART-BOX modern IP 66 enclosures for today's industrial electronics equipment.
SMART-BOX hinged trims hide all the fixing screws. The cases can be mounted without opening the lid.
SMART-BOX with recessed top section for membrane keypads or product labels.
OKW’s SMART-BOX IP-rated enclosures for industrial electronics are now available in eight sizes and with a wide range of customization options.
These contoured, ergonomic enclosures feature separate channels for the lid screws and mounting screws so they can be installed ‘lid closed’ – protecting the electronics and the pre-fitted sealing gasket. Hinged flush-fitting trims conceal all the screws, which are A2 stainless steel with high corrosion resistance.
The lid features a generous recess for a membrane keypad or product label. Two plastic lid-retaining straps safeguard the opened lid for installation and maintenance in challenging locations. Inside the lid and main body, there are internal fastening pillars for PCBs and DIN rails.
SMART-BOX is molded from ASA+PC-FR (UL 94 V-0) for added UV stability. Its eight sizes range from 4.72" x 3.54" x 1.96" to 11.02" x 6.69" x 2.36". Seven of the eight sizes (widths 3.54", 4.33", 5.11", 5.90") are rated IP 66; the eighth (width 6.69") is IP 65.
Accessories for SMART-BOX include pressure equalization elements, cable grommets, security plugs, TPE non-slip case feet for desktop use, and self-tapping screws (including tamperproof Torx T10).
SMART-BOX can be specified fully customized. Services include CNC machining, printing or laser marking of legends and logos, decor foils, RFI/EMI shielding, installation and assembly of accessories.
View SMART-BOX range here >>
